MG4 Series 200 Millimeter (mm) Diameter D, 1-1/2 to 2 Inch (in) Inlet/Outlet Size, and 1/2 Inch (in) Drain Size 304/316 Stainless Steel Cartridge Filter.
Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120 µm. For the same form of filter, it is divided into different models by their dimensions.

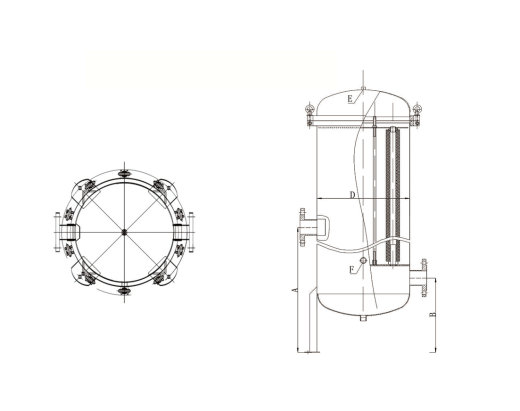

|Diameter D||200 mm|
|Inlet/Outlet||1-1/2 to 2 in|
|Drain Size||1/2 in|
|Maximum Working Pressure||150 psi|
|Making Method||Polished External Surface
Sandblast External Surface
|Keywords||Cartridge Filter Housing|
|Dimension A||700 mm|
|Dimension B||250 mm|
