Product Line Description

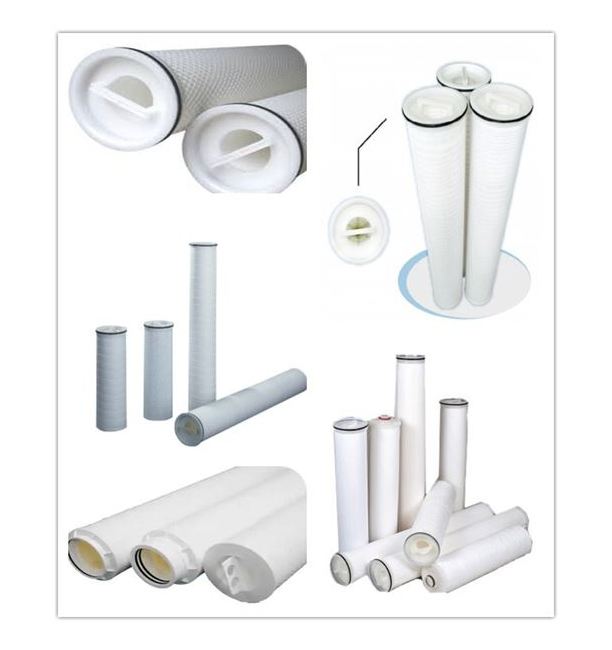

20.69 Inch (in) Length and 20 Micrometer (µm) Micron Rating Glass Fiber Filter Media Highflow Pleated Filter Cartridge with Buna Seal Material.

Highflow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.

Brands JMCC
Model Hi-Flow
Material of Construction
Filter Media Pleated Glass Fiber
Support Layer Polypropylene (PP)
End Adapter Glass Fiber Reinforced Polypropylene
Seal Materials Buna
Micron Rating 20 µm
Filtration Area 660 L/min
Length 20.69 in
525 mm
Outside Diameter 6 in
152 mm
Recommended Operating Conditions
Maximum Operating Temperature 121 ºC
Maximum Differential Pressure at 121 Degree Celsius (ºC) Temperature 3.4 bar
Recommended Change Out Differential Pressure at 20 Degree Celsius (ºC) Temperature 2.4 bar
  • Pre-filtration of RO, pre-treatment of sea water desalination
  • Bottled water, high Fructose, edible oil, soft drinks
  • API, solvents, and water filtration in BioPharma market
  • Paints and coatings, petrochemical, refineries
  • Microelectronics
