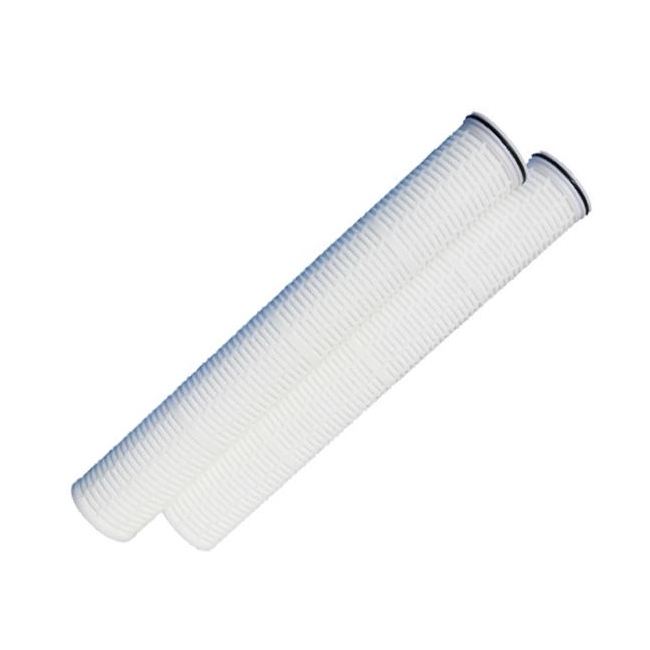

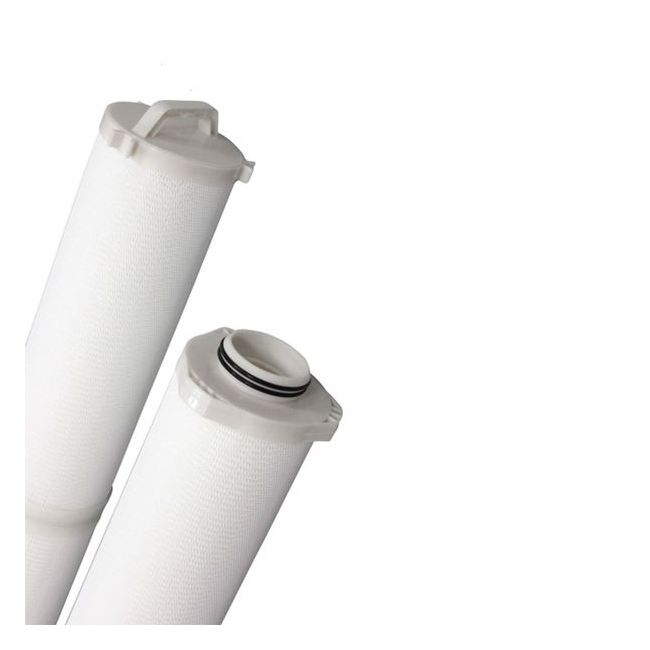

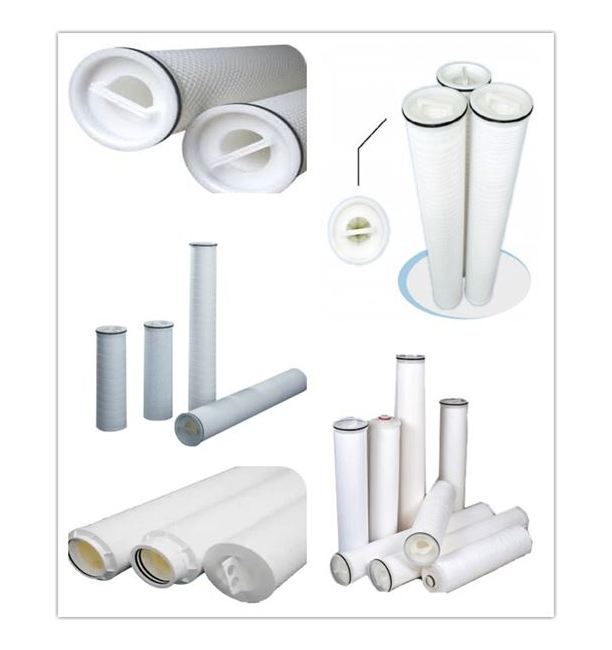

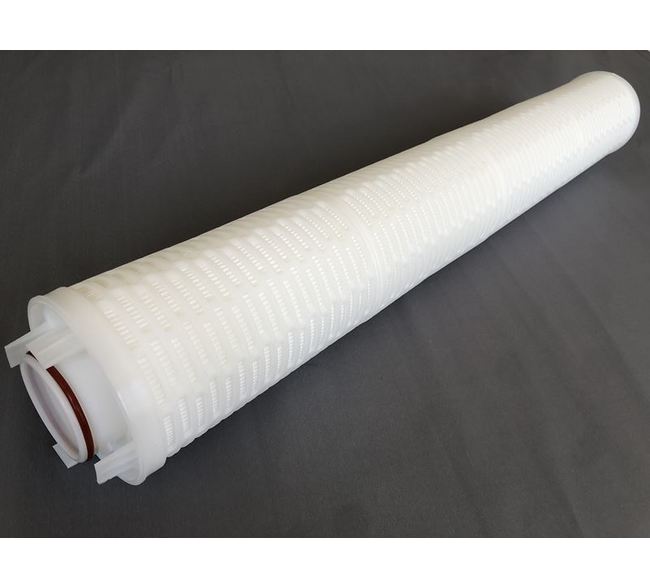

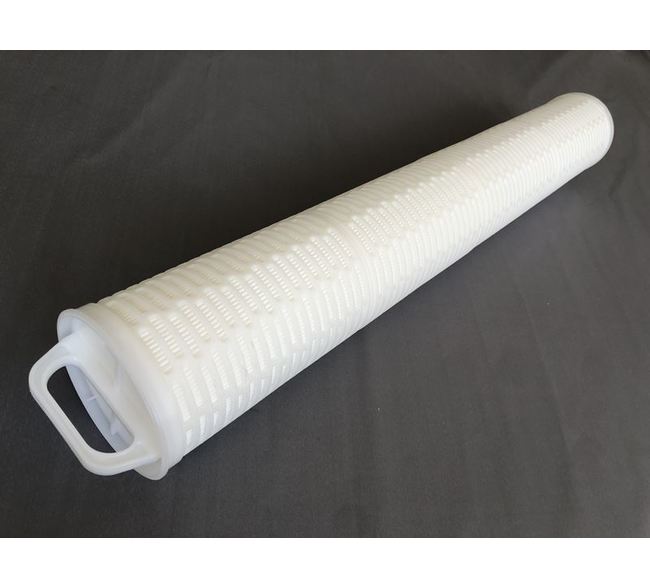

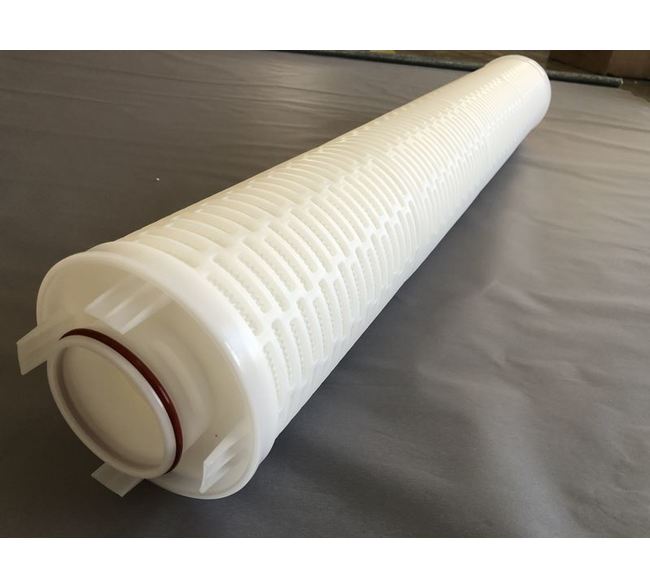

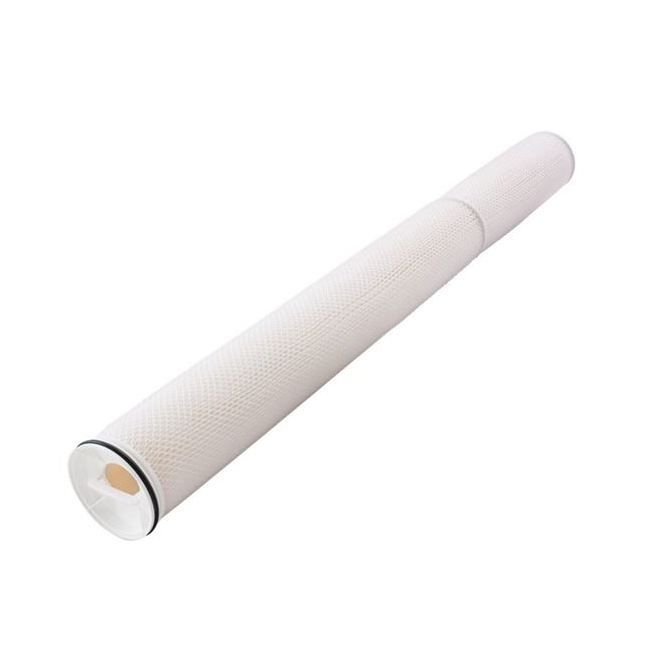

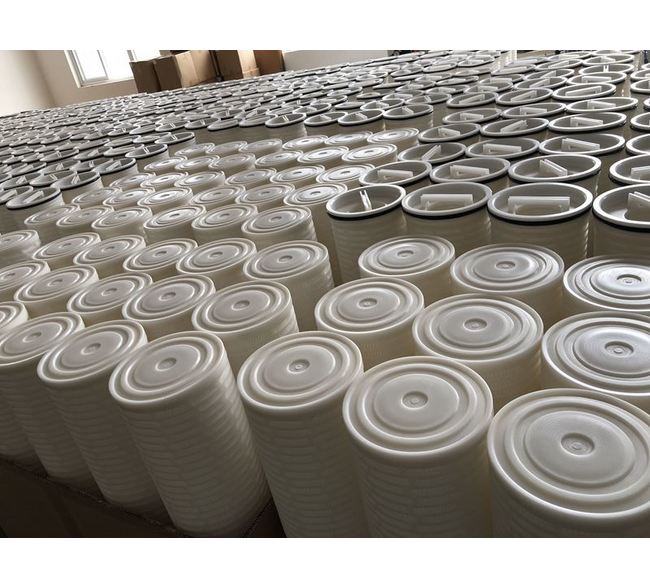

40.69 Inch (in) Length and 40 Micrometer (µm) Micron Rating Melt Brown Polypropylene (PP) Filter Media Highflow Pleated Filter Cartridge with Ethylene Propylene Diene Monomer (EPDM) Seal Material.
Highflow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.
|Material of Construction|
|Filter Media||Melt Brown Polypropylene (PP)|
|Support Layer||Polypropylene (PP)|
|End Adapter||Glass Fiber Reinforced Polypropylene|
|Seal Materials||E – Ethylene Propylene Diene Monomer (EPDM)|
|Micron Rating||40 µm|
|Filtration Area||1300 L/min|
|Outside Diameter||6 in
|Recommended Operating Conditions|
|Maximum Operating Temperature||65 ºC|
|Maximum Differential Pressure at 65 Degree Celsius (ºC) Temperature||1.03 bar|
|Recommended Change Out Differential Pressure at 20 Degree Celsius (ºC) Temperature||2.4 bar|
