HM-BFH-1

Product Line Description

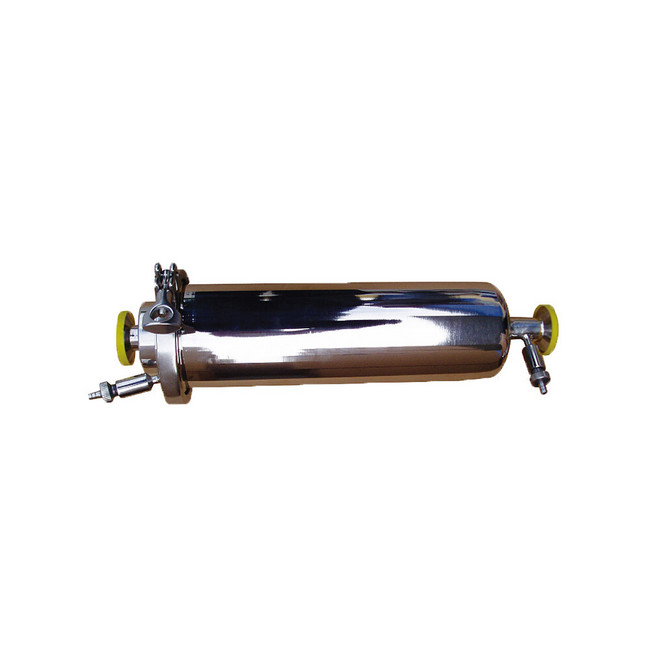

500 Millimeter (mm) Dimension A and 1 to 3 Inch (in) Inlet/Outlet Size Single Bag Filter.
This item mainly composed of single/multi filter bag , shell, support rack and fixture and measuring device. The fluid flows from the filter entrance into filter cartridge with miscellaneous quality piece retained on the surface or deep in ,while purified fluid runs off from the outlet. Filter adopt clamps, ordinary flange, fast shackle bolt to lock ears. With female or sanitary clamp connect with the top cap, which usually install the gauge or platoon air valve, the inlet /outlet are connected with flange, silk thread and sanitary clamp.

Specifications
Brands HUAMO
JMCC
Inlet/Outlet 1 to 3 in
Material SUS304L
SUS316L
Maximum Working Pressure 100 psi
150 psi
Making Method Polished
Sandblast
Dimensions
Dimension A 500 mm
Dimension B  380 mm
Dimension C 700 mm
Dimension D 200 mm
Dimension F 170 mm
