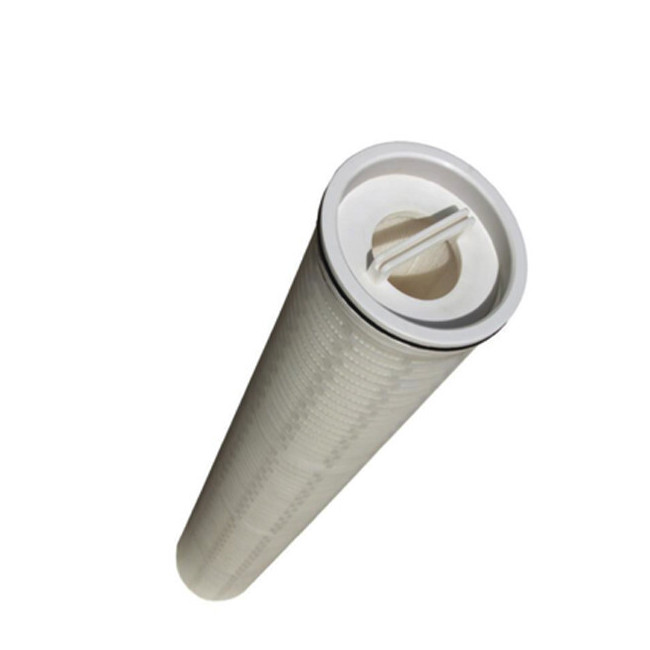

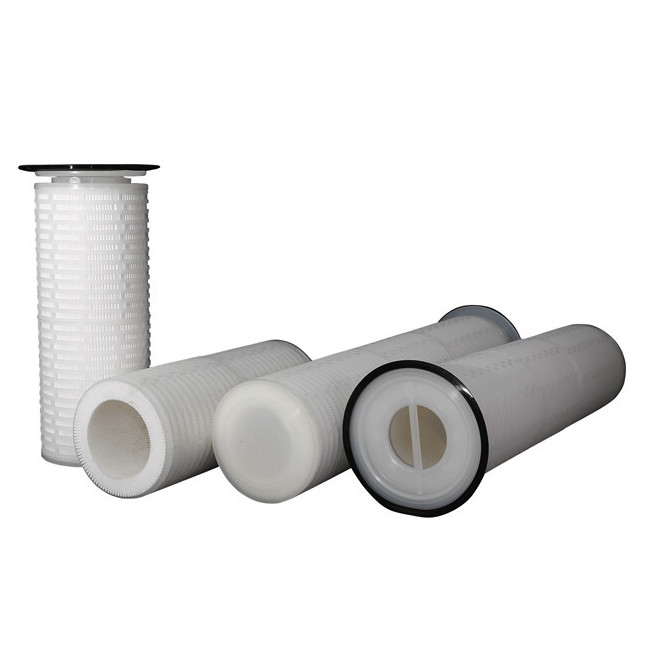

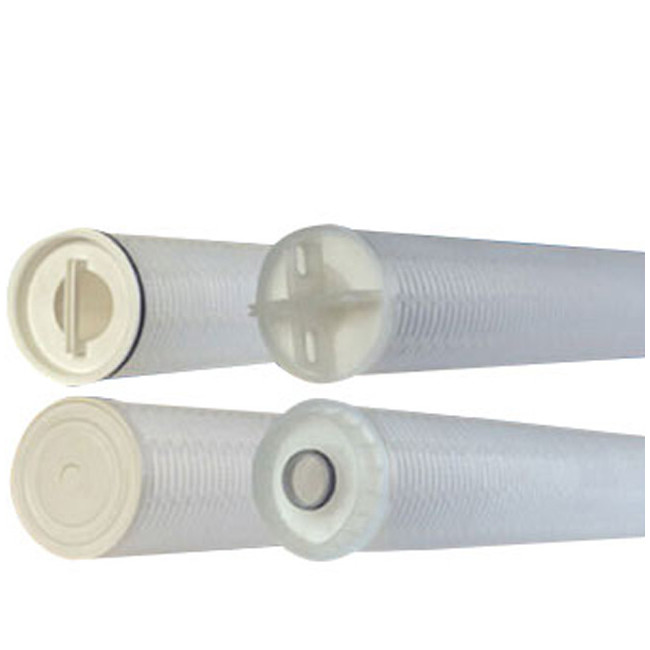

1016 Highflow Pleated Filter Cartridges

Gallery Images

Product Line Description

The unique layered construction combined with a rigid case construction provides a high strength and security to withstand the harsh requirements of the Oil field Industry. All components are thermally bonded, allowing operations at higher temperature, pressure and make the cartridge compatible with most fluids and additives in the industry.

The highflow-series Filter Cartridge is designed to allow a high contaminant holding capacity. The specially selected polypropylene and borosilicate glass-fiber material provides the unique combination of high flow rate (110 m3/h), high dirt holding capacity, low pressure drop, increased surface area at absolute rating of beta 5000 (99.98%removal) and a wide range of micron ratings (1-100 micron).

Specifications
Brands HUAMO
JMCC
Flow Rate 110 m³/h
Filter Accuracy 1 µm
5 µm
10 µm
20 µm
40 µm
70 µm
100 µm
Maximum Working Temperature 82 ºC
Maximum Pressure at 82 Degree Celsius (ºC) Temperature 3.4 bar
Recommended Maximum Filtered Water Flow 1300 L/min
Part Material
  1. Filter Material: Polypropylene (PP)
  2. Support/Diversion Layer: Polypropylene (PP)
  3. End Cap Material: Reinforced Polypropylene
  4. Sealing Ring Material: Ethylene Propylene Diene Monomer (EPDM) Rubber
Keywords Highflow Filter cartridge
Highflow PP Pleated Filter
Features
  1. The filter element has large dirt holding capacity and long service life
  2. A wide range of chemical applications can be used in multiple fields
