UF-4046 Ultra Filtration Membranes

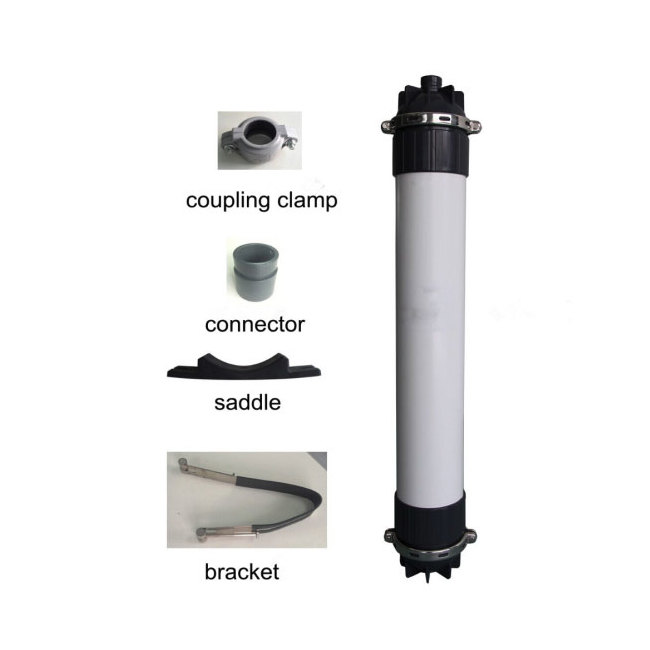

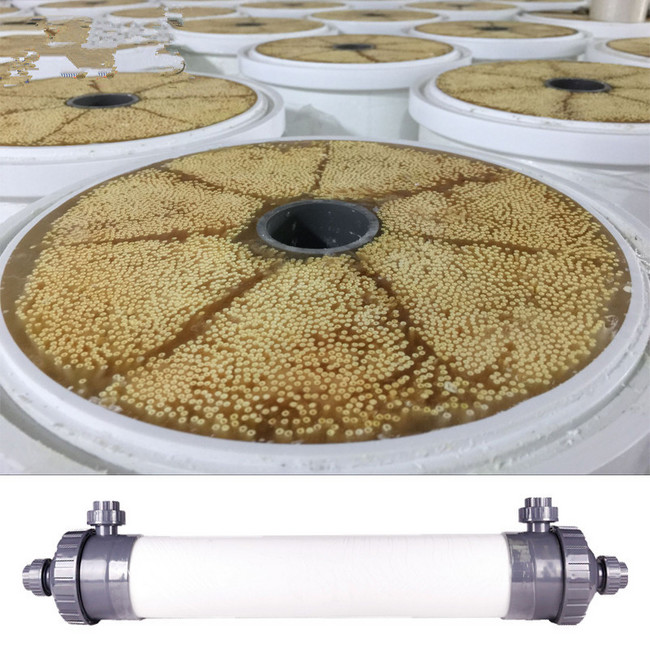

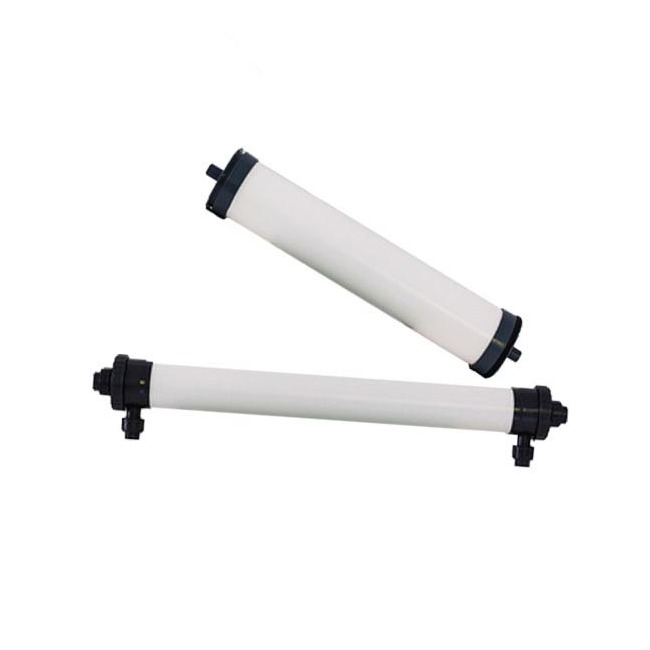

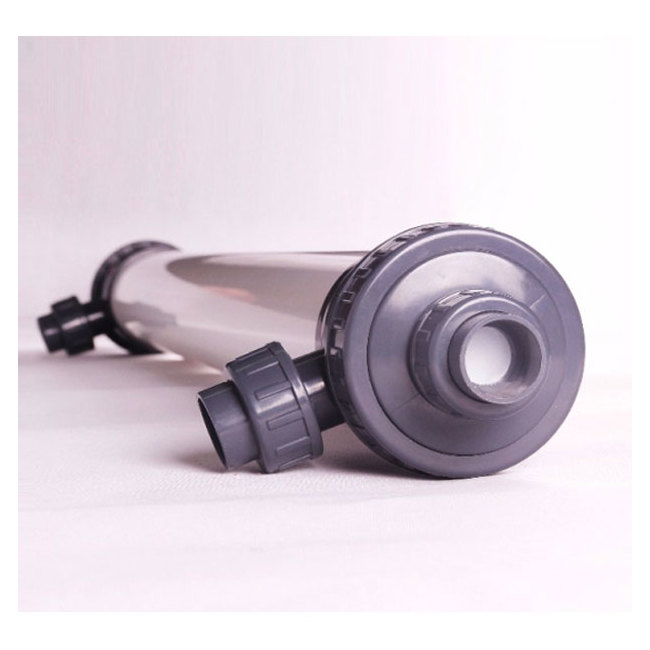

Gallery Images
Product Line Description
UF-4046 is an Ultra Filtration membrane unit made by PAN material hollow fiber tubes, PVC shell. These UF membranes are characterized by Antibacterial function.(especially good for removing particulate, virus, colloid, albumin protein, gelatin, carbon black, organic compound).
| Specifications | |
|---|---|
| Brands | HUAMO JMCC |
| Module Type | Inside-Out |
| Shell | Polyvinyl Chloride (PVC) |
| Seal Materials | Epoxy Resins |
| Membrane Material | Polyacrylonitrile (PAN) Polyvinyl Chloride (PVC) Polyvinylidene Fluoride (PVDF) |
| Cut Off Molecular Weight | 50.000 Dalton |
| Size | 90 x 1155 mm |
| Active Membrane Area | 4.8 m² |
| Hollow Fiber Tubes Inner Diameter (ID) | 1.0 mm |
| Hollow Fiber Tubes Outer Diameter (OD) | 1.6 mm |
| Maximum Working Pressure | 43 psi 0.3 MPa |
| Suggested Working Pressure | 30 psi 0.2 MPa |
| Maximum Transmembrane Pressure Drop | 30 psi 0.2 MPa |
| Backwash Pressure | 0.05 to 0.1 MPa |
| Permeate Water SDI15 | < 3 |
| Initial Permeate Flow | 1 m³/h |
| Designing Permeate Water Flow | 40 to 150 L/m²/h |
| Operating Mode | Cross Flow Dead-End Flow |
| Bacteria Removal Rate | ≥ 4 log |
| Produced Water Silt Density Index (SDI) | ≤ 3.0 |
| Permeate Turbidity | ≤ 0.1 NTU |
| Maximum Feed Water Temperature | 5 to 40 ºC |
| Potential of Hydrogen (pH) Range of Feed Water During Continuous Operation | 2 to 10 pH |
| Hollow Fiber Tubes Quantity | 1,500 pcs |
| Feed Water Turbidity | < 70 NTU |
| Permeate Water Turbidity | < 1 NTU |
| Feed Water Residual Chlorine | < 70 ppm |
| Feed Water SDI15 | < 25 |
