CW Pleated Filter Cartridges
Gallery Images
Product Line Description
CW Pleated Filter Cartridge is making by unique technology, which design with single outer cage. This pleated filter cartridge can achieve efficiency in filtration and have a wide range of application. It has a low initial pressure drops.
| Specifications | |
|---|---|
| Brands | JMCC |
| Material of Construction | |
| Filter Media | Polypropylene (PP) |
| Support | Polypropylene (PP) |
| Core/Cage/End Adapter | Polypropylene (PP) |

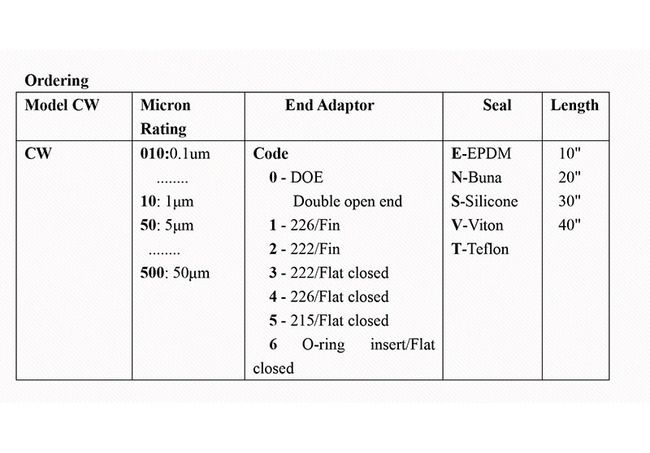

| Ordering Information | |
| Model | CW |
| Micron Rating | 010 – 0.1 µm 020 – 0.2 µm 045 – 0.45 µm 065 – 0.65 µm 10 – 1 µm 50 – 5 µm 200 – 20 µm 500 – 50 µm |
| End Adapter | 0 – DOE (Double Open End) 1 – 226/Fin 2 – 222/Fin 3 – 222/Flat Closed 4 – 226/Flat Closed 5 – 215/Flat Closed 6 – O-Ring Insert/Flat Closed |
| Seal Materials | E – Ethylene Propylene Diene Monomer (EPDM) N – Buna S – Silicone T – Polytetrafluoroethylene (PTFE) V – Fluorocarbon (FKM) |
| Outside Diameter | 2.7 in 69 mm |
| Length | 10 – 10 in. 20 – 20 in. 30 – 30 in. 40 – 40 in. |
| Recommended Operating Conditions | |
| Forward Pressure at 20 Degree Celsius (ºC) Temperature | 5 bar |
| Forward Pressure at 80 Degree Celsius (ºC) Temperature | 2 bar |
| Applications | |
|
|
