Polyester Pleated Filter Cartridges
Gallery Images
Product Line Description
Polyester Pleated Filter Cartridge is made of pleated polyester media. The benefits can be summary: low pressure drop, increased surface life, excellent contaminant removal.
| Specifications | |
|---|---|
| Brands | JMCC |
| Material of Construction | |
| Filter Media | Cellulose Polyester Polypropylene (PP) |
| Support Core | P – Polypropylene (PP) |
| End Cap Material | Plastisol Polyurethane (PU) |

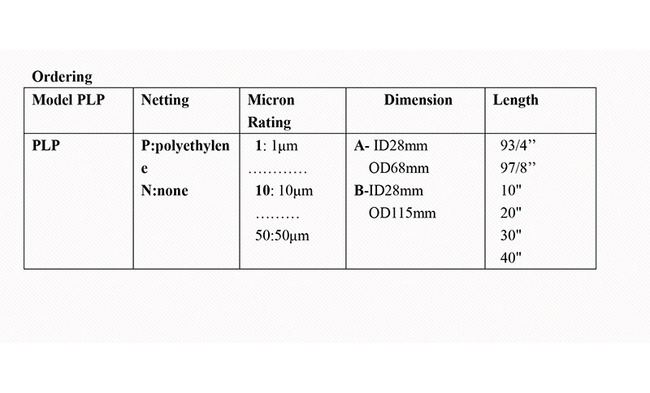

| Ordering Information | |
| Model | PLP |
| Netting | P – Polyethylene N – None |
| Micron Rating | 1 – 1 µm 3 – 3 µm 5 – 5 µm 10 – 10 µm 20 – 20 µm 50 – 50 µm |
| Dimension | A – 28 mm Inside Diameter/68 mm Outside Diameter B – 28 mm Inside Diameter/115 mm Outside Diameter |
| Length | 9-3/4 – 9-3/4 in. 9-7/8 – 9-7/8 in. 10 – 10 in. 20 – 20 in. 30 – 30 in. 40 – 40 in. |
| Recommended Operating Conditions | |
| Maximum Operating Temperature | 40 ºC |
| Maximum Differential Pressure | 4.0 bar |
| Applications | |
|
|
